MG Plus | Series 3541

MG Plus

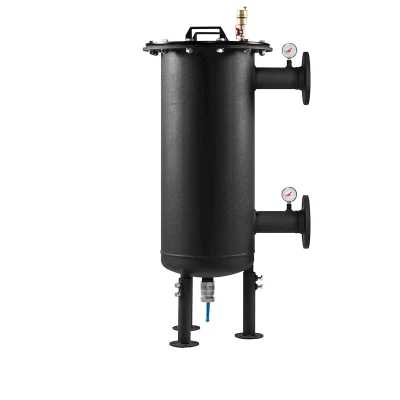

Self-cleaning magnetic sludge remover filter for water

Series 3541
Self-cleaning magnetic sludge remover filter for hydraulic systems. With drain ball cock. Suitable for boiler room.
Main body and flanges in painted steel on the outside
Steel cover
Elastomer seals
AISI stainless steel filter basket
Pair of pressure gauges, 0-10 bar scale
PN16 flanged couplings
Max operating pressure 10 Bar
Max operating temperature 95 °C
Neodymium magnets
Filtering grade 100 μm

Features:

Self-cleaning magnetic sludge remover filter for boiler room

Code Measure Kv (m³/h) Pack Outer Cat.
3541.09.10 DN 50 14* - 23** 1 1 20.03 ||35410910_LastPrice||
3541.10.10 DN 65 35* - 46** 1 1 20.03 ||35411010_LastPrice||
3541.11.10 DN 80 42* - 57** 1 1 20.03 ||35411110_LastPrice||
3541.13.10 DN 100 55* - 73** 1 1 20.03 ||35411310_LastPrice||
3541.14.10 DN 125 100* - 131** 1 1 20.03 ||35411410_LastPrice||
3541.15.10 DN 150 141* - 173** 1 1 20.03 ||35411510_LastPrice||

* Flow rate with 20 kPa pressure drop

** Flow rate with 30 kPa pressure drop
