MG1

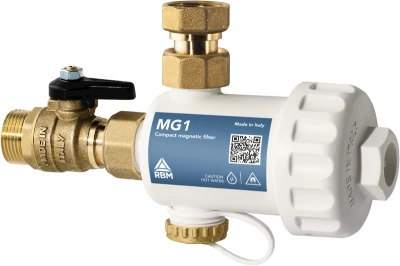

Under-boiler white magnetic sludge remover filter

Series 3070.B
Under-boiler magnetic sludge remover filter. Supplied complete with swivel filter/boiler connection fitting and ball valve.
Plastic polymer cartridge holder body.
Stainless steel AISI 304 filtering cartridge.
Elastomer hydraulic seals.
Threaded connections MF UNI-EN-ISO 228.
Max operating pressure 3 Bar
Operating temperature 0 ÷ +90 °C
Neodymium magnet B = 11000 gauss
B(T max) / B(T amb)* < 1%
Filtering grade 800 μm

Features:

Certifications:

Under-boiler magnetic sludge remover filter, white version

Code Measure Kv (m³/h) Pack Outer Cat.
30700550 G 3/4" 5,49 1 6 20.03 ||30700550_LastPrice||

800 μm and 400 μm filtering cartridges available in the Service division.
