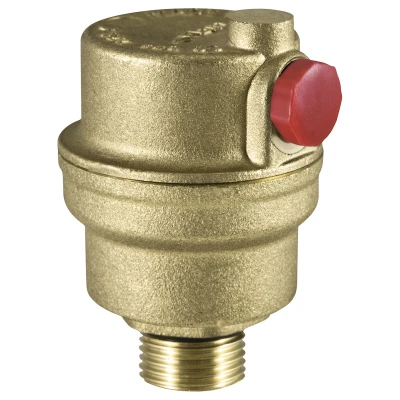

Miniluft Compact
Compact automatic air vent valve for small systems
Series 2827.A
Compact automatic air vent valve for smaller systems, complete with manual locking pawl. Lateral discharge. Float operation.
| Brass body. Polymer cap unit. |
| Float in PP. |
| Stainless steel AISI 302 spring. |
| Elastomer seals. |
| Polymer air pocket breaker |
| Threaded connection M UNI-EN-ISO 228. |
| Max operating pressure 10 Bar |
| Max operating discharge pressure 4 Bar |
| Max operating temperature 115 °C |
| Allowed fluid water and water+glycol 30 % |
Download
Features:
Compact automatic air vent valve with side drain
| Code | Measure | Model | Pack | Outer | Cat. | € |
| 2827.03.10* | G 3/8" | Miniluft Compact | 1 | 10 | 20.02 | ||28270310_LastPrice|| |
| 2827.04.00 | G 1/2" | Miniluft Compact | 1 | 50 | 20.02 | ||28270400_LastPrice|| |
*Valve fitted with air pocket breaker
