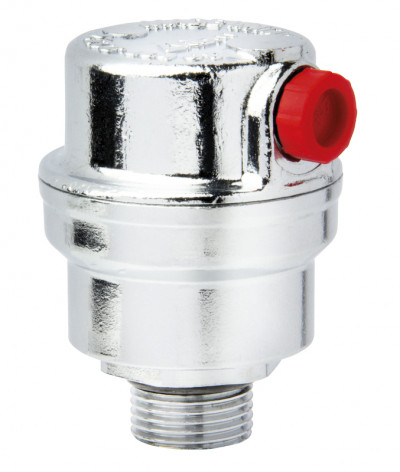

Miniluft Compact
Compact chrome-plated automatic air vent valve for small systems
Series 2827.B
Valvola automatica di sfogo aria compatta cromata - scarico laterale - per piccoli impianti, completa di nottolino di chiusura manuale. Scarico laterale. Funzionamento a galleggiante.
| Chrome brass body and cap. |
| Float in PP. |
| Stainless steel AISI 302 spring. |
| Elastomer seals. |
| Threaded connection M UNI-EN-ISO 228. |
| Max operating pressure 10 Bar |
| Max operating discharge pressure 4 Bar |
| Max operating temperature 115 °C |
| Allowed fluid water and water+glycol 30 % |
Download
Features:
Chrome-plated automatic compact air vent valve - side drain
| Code | Size | Model | Box | Carton | Cat. | € |
| 28270390 | G 3/8" | Miniluft Compact | 1 | 50 | 20.02 | ||28270390_LastPrice|| |
| 28270490 | G 1/2" | Miniluft Compact | 1 | 50 | 20.02 | ||28270490_LastPrice|| |
Compact!
