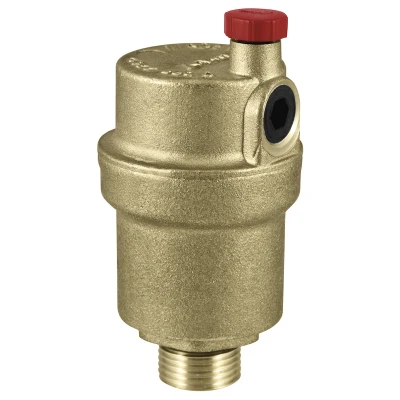

Miniluft
Compact automatic air vent valve for small systems
Series 2828
Compact automatic air vent valve for smaller systems, complete with manual locking pawl. Vertical discharge. Float operation.
| Brass body. Polymer cap unit. |
| Float in PP. |
| Stainless steel AISI 302 spring. |
| Elastomer seals. |
| Polymer air pocket breaker |
| Threaded connection M UNI-EN-ISO 228. |
| Max operating pressure 10 Bar |
| Max operating discharge pressure 6 Bar |
| Max operating temperature 115 °C |
| Allowed fluid water and water+glycol 30 % |
Download
Features:
Certifications:
WRAS certificate only for code 2828.04.00
Compact automatic air vent valve with vertical drain
| Code | Measure | Model | Pack | Outer | Cat. | € |
| 28280310* | G 3/8" | Miniluft | 1 | 50 | 20.02 | ||28280310_LastPrice|| |
| 28280400 | G 1/2" | Miniluft | 1 | 50 | 20.02 | ||28280400_LastPrice|| |
*Valve fitted with air pocket breaker
Vertical discharge.
