SafeCleaner2 | Series 2344

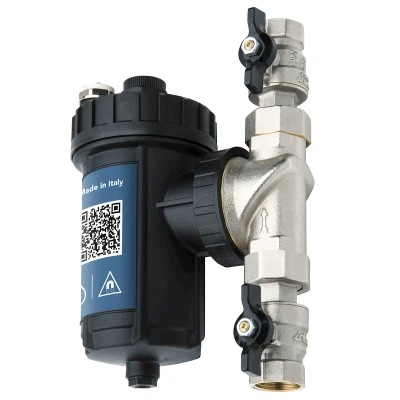

SafeCleaner2
Multifunction polymer magnetic dirt separator

Series 2344
Multifunction polymer magnetic dirt separator, diverter in brass, with FF ball valves connection.
Plastic polymer cartridge holder body.
Nickel plated brass diverter valve.
Stainless steel AISI 304 filtering cartridge.
Elastomer hydraulic seals.
Threaded connections FF UNI-EN-ISO 228.
Max operating pressure 4 bar
Operating temperature 0 ÷ +90 °C
Neodymium magnet B = 11000 gauss
B(T max) / B(T amb)* < 1%
* T max = 130 °C - T amb = 21 °C

Features:

Certifications:

Multi-function magnetic sludge remover filter, brass diverter valve body, with FF connection ball valves

Code Measure Kv (m³/h) Pack Outer Cat.
2344.05.50 G 3/4" 6,81 1 6 20.03 ||23440550_LastPrice||
2344.06.50 G 1" 7,51 1 4 20.03 ||23440650_LastPrice||
2344.07.50 G 1"1/4 7,51 1 4 20.03 ||23440750_LastPrice||
