Series 10

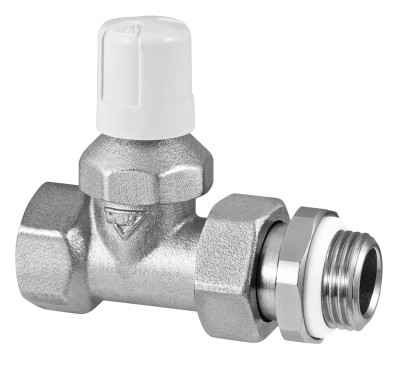

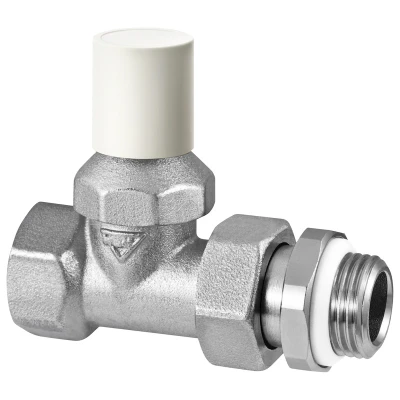

Straight lockshield shut-off and regulating valve for iron pipe

Series 10
Straight lockshield shut-off and regulating valve for iron pipe.
Nickel brass body.
Elastomer seals.
Shockproof ABS cap.
Threaded straight connection F UNI-EN-ISO 228 for iron pipe.
Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive (only for 3/8" and 1/2" diameters).
Max operating temperature 110 °C
Max operating pressure 10 Bar

Straight lockshield regulating valve for iron pipe

Code Measure Kv (m³/h) Pack Outer Cat.
10.03.00 G 3/8" 1,4 10 100 21.01 ||00100300_LastPrice||
10.04.00 G 1/2" 1,8 10 100 21.01 ||00100400_LastPrice||
10.05.00 G 3/4" 4,9 10 60 21.01 ||00100500_LastPrice||
10.06.00 G 1" 8,2 6 6 21.01 ||00100600_LastPrice||
10.07.00 G 1"1/4 22,5 4 4 21.01 ||00100700_LastPrice||
