Series 1028

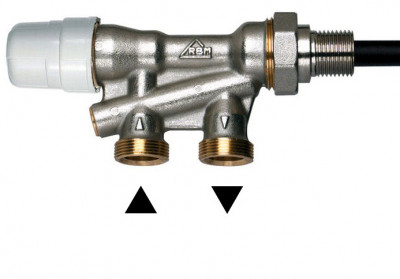

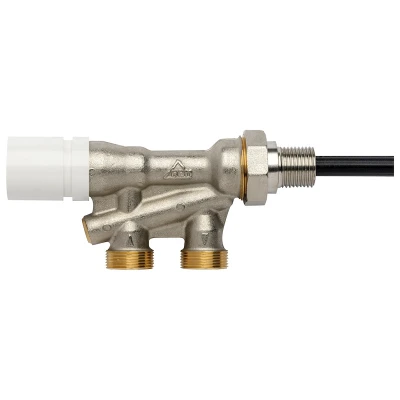

“Termoflux” 4-way thermostatically controlled valve for single pipe circuits

Series 1028
"Termoflux" 4-way thermostatically controlled valve for single pipe circuits.
Nickel brass body.
Built-in micrometric lockshield valve.
Elastomer seals.
Shockproof ABS cap and handwheel.
Polymer probe.
In-line connections, centre distance 37 mm M standard RBM thread for copper, polyethylene and multilayer pipe fittings.
Threaded radiator connection M UNI-EN-ISO 228.
Max operating temperature 110 °C
Max operating pressure 10 Bar
Probe length 295 mm
1/2" probe outside diameter 10 mm
3/4" probe outside diameter 13 mm

4-way valve with thermostatic option for single pipe circuits

Code Measure Model Pack Outer Cat.
1028.04.00 G 1/2" Termoflux 4 16 21.01 ||10280400_LastPrice||
1028.05.00 G 3/4" Termoflux 4 16 21.01 ||10280500_LastPrice||
