Series 1344

Jet-Line series: thermostatic angle valve kit for copper or polyethylene pipe

Series 1344
Jet-Line Series: thermostatic option kit with thermostatic option angle valve for copper or polyethylene pipe, compliant with standard UNI-EN 215 and angle lockshield valve for copper or polyethylene pipe.
Nickel-plated brass body.
Double seal obturator.
Shockproof ABS handwheel.
Elastomer seals.
Threaded angled M standard RBM connection for copper, polyethylene, multilayer pipe fittings.
Connection to threaded terminal M UNI-EN-ISO 228.
Max operating temperature 110 °C
Max operating pressure 10 Bar

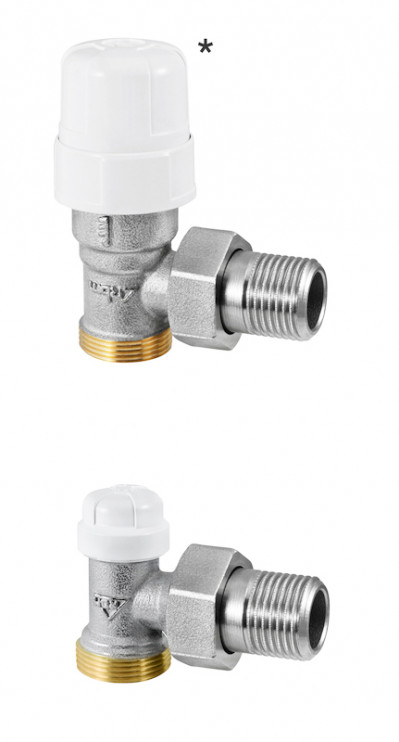

Angle valve with thermostatic option and lockshield valve for copper or polyethylene pipe

Code Size Box Carton Cat.
13440300 RBM 3/8" 10 100 21.01 ||13440300_LastPrice||
13440400 RBM 1/2" 10 100 21.01 ||13440400_LastPrice||

* Licensed use of trademark no. 43

System side standard RBM thread W 24.5x19F

Supplied with:

valve with thermostatic option;

lockshield valve.

Use fittings with RBM Standard thread for pipe connection.

Kit components supplied in separate packages.
