Series 152

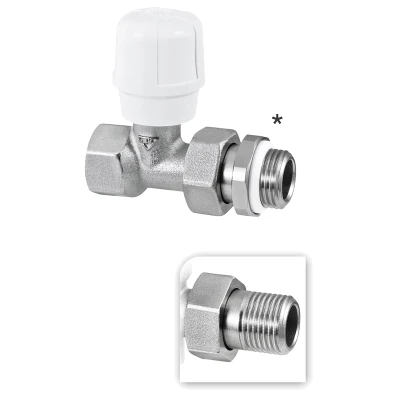

Jet-Line Series: straight lockshield valve with double seal O-ring for iron pipe

Series 152
Jet-Line Series: straight lockshield valve with double seal O-ring for iron pipe.
Nickel brass body.
Elastomer seals.
Shockproof ABS handwheel.
Threaded straight connection F UNI-EN-ISO 228 for iron pipe fittings.
Connection to threaded terminal M UNI-EN-ISO 228 (with pre-gasket ogive in PTFE series *).
Max operating temperature 110 °C
Max operating pressure 10 Bar

Certifications:

Double seal O.R. straight valve for iron pipe - RFS seal on radiator*

Code Measure Pack Outer Cat.
152.03.00 RFS 3/8" 10 100 21.01 ||01520300_LastPrice||
152.04.00 RFS 1/2" 10 100 21.01 ||01520400_LastPrice||

Straight valve with double seal o-ring for iron pipe

Code Measure Pack Outer Cat.
152.03.40 3/8" 10 100 21.01 ||01520340_LastPrice||
152.04.40 1/2" 10 100 21.01 ||01520440_LastPrice||
152.05.40 3/4" 10 100 21.01 ||01520540_LastPrice||

Thread MF UNI-EN-ISO 228
