Elbow fitting for valve-pipe connection
Series 177
Elbow fitting for valve-pipe connection.
| Nickel brass body. |
| Elastomer seals. |
| Threaded pipe connection M standard RBM for copper, polyethylene and multilayer pipe fittings. |
| Connection to valve with RBM standard F threaded fitting |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Elbow fitting for valve-pipe connection

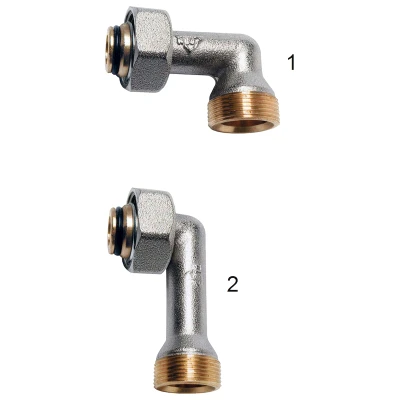

| Code | Figure | Centre distance (mm) | Pack | Outer | Cat. | € |
| 01770000 | 2 | 32 | 20 | 20 | 21.01 | ||01770000_LastPrice|| |
| 01770010 | 1 | 60 | 20 | 20 | 21.01 | ||01770010_LastPrice|| |
For distribution outside of baseboard.
Valve-pipe connection.
Use fittings with RBM Standard thread for pipe connection.
