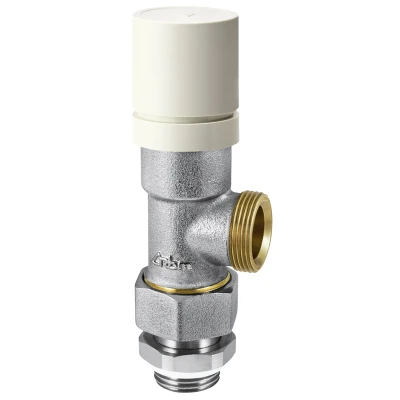

Inverse angle valve with thermostatic option for copper or polyethylene pipe
Series 180
Inverse angle valve with thermostatic option for copper or polyethylene pipe
| Nickel brass body. |
| Double seal obturator. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| RBM standard threaded straight M connection for copper, polyethylene and multilayer pipe fittings. |
| Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
Inverse angle valve with thermostatic option for copper or polyethylene pipe
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 01800300* | G 3/8" | 0,99 | 10 | 100 | 21.01 | ||01800300_LastPrice|| |
| 01800400* | G 1/2" | 0,99 | 10 | 100 | 21.01 | ||01800400_LastPrice|| |
* with RFS
