Brass compact manifold kit
Series 2028.A

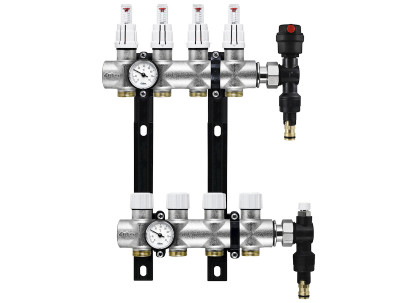

Brass compact manifold kit.
| Each kit contains: |
| n° 1 multi-way manifold unit complete with flow meters with lockshield and flow indicator function; |
| n° 1 multi-way manifold unit complete with valves with thermostatic option with hand wheel; |
| 1 pair of plastic brackets for fixing manifolds; |
| n° 2 thermometers 0÷80 °C; |
| n° 2 union fittings; |
| 1 x 1" air / water automatic discharge terminal unit; |
| n° 1 manual 1" air / water discharge terminal unit. |
| Temperature range 0÷80 °C |
| Max operating pressure 10 Bar |
Download
Brass compact manifold kit
| Code | Measure | Ways | Pack | Outer | Cat. | € |
| 20280610 | 1" | 2+2 | 1 | 1 | 30.01 | ||20280610_LastPrice|| |
| 20290610 | 1" | 3+3 | 1 | 1 | 30.01 | ||20290610_LastPrice|| |
| 20300610 | 1" | 4+4 | 1 | 1 | 30.01 | ||20300610_LastPrice|| |
| 20310610 | 1" | 5+5 | 1 | 1 | 30.01 | ||20310610_LastPrice|| |
| 20320610 | 1" | 6+6 | 1 | 1 | 30.01 | ||20320610_LastPrice|| |
| 20330610 | 1" | 7+7 | 1 | 1 | 30.01 | ||20330610_LastPrice|| |
| 20340610 | 1" | 8+8 | 1 | 1 | 30.01 | ||20340610_LastPrice|| |
| 20350610 | 1" | 9+9 | 1 | 1 | 30.01 | ||20350610_LastPrice|| |
| 20360610 | 1" | 10+10 | 1 | 1 | 30.01 | ||20360610_LastPrice|| |
| 20370610 | 1" | 11+11 | 1 | 1 | 30.01 | ||20370610_LastPrice|| |
| 20380610 | 1" | 12+12 | 1 | 1 | 30.01 | ||20380610_LastPrice|| |
| 20381310 | 1" | 13+13 | 1 | 1 | 30.01 | ||20381310_LastPrice|| |
| 20381410 | 1" | 14+14 | 1 | 1 | 30.01 | ||20381410_LastPrice|| |
Kit including distribution way connections centre distance 50mm, thread EUROCONUS G3/4" UNI-EN-ISO 228
Manifold kit can be inserted in walls constructed in 8 cm box, plastered.
Made up of flow meter supply indicator on each supply way. Loose packaged components.
Use Euroconus fittings with G3/4" thread (see page
Composition that can be used in combination with mixing units.
