Jet-Line series: thermostat kit with angle thermostat valve for iron pipe
Series 2080
Jet-Line Series: thermostatic option kit with thermostatic option angle valve for iron pipe, compliant with standard UNI-EN 215 and angle lockshield valve for iron pipe.
| Nickel brass body. |
| Double seal obturator. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| Threaded angled connection F UNI-EN-ISO 228 for iron pipe. |
| Connection to threaded terminal M UNI-EN-ISO 228. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download

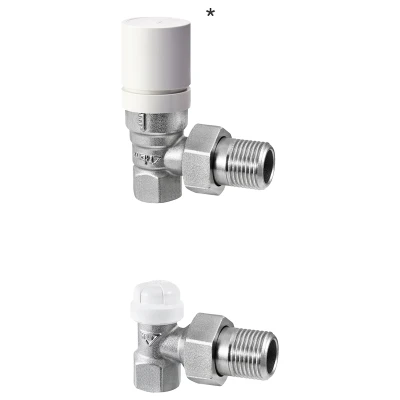

Angle valve with thermostatic option and lockshield valve for iron pipe
| Code | Measure | Pack | Outer | Cat. | € |
| 20800300 | 3/8" | 10 | 100 | 21.01 | ||20800300_LastPrice|| |
| 20800400 | 1/2" | 10 | 100 | 21.01 | ||20800400_LastPrice|| |
* Licensed use of trademark no. 43
Supplied with:
valve with thermostatic option;
lockshield valve.
Kit components supplied in separate packages.
