Series 211

Kits for heating units

Series 211
Kit for heating units fed by single pipe and double pipe circuits.
Nickel brass body.
Elastomer seals.
Shockproof ABS cap and handwheel.
Built-in micrometric lockshield valve.
Internal bypass with 50% bore only for single pipe applications.
Angle connections, centre distance 37 mm M standard RBM thread for copper, polyethylene and multilayer pipe fittings.
Connections for external probe Ø 15 mm.
Threaded connections to terminal M UNI-EN-ISO 228 with pre-gasket ogive in PTFE.
Max operating temperature 110 °C
Max operating pressure 10 Bar
Probe not included.

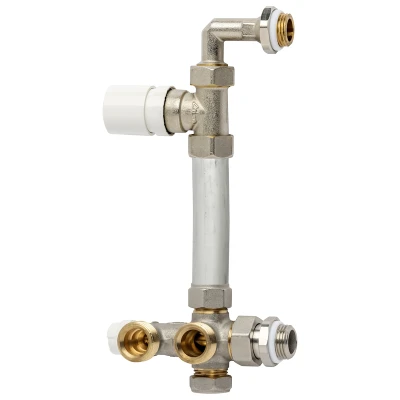

Kit including angle diverter valve + thermostatically controlled 1/2” straight valve for single- and double-pipe systems

Code Measure Model Pack Outer Cat.
211.04.50* G 1/2" Kit 50% 1 10 21.01 ||02110450_LastPrice||
211.04.00* G 1/2" Kit 100% 1 10 21.01 ||02110400_LastPrice||

* with RFS
