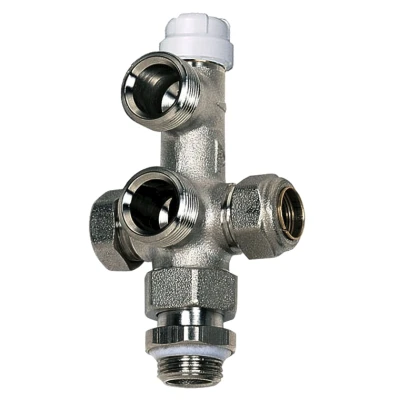

4-way angle diverter valve
Series 214
4-way angle diverter valve for single-pipe and two-pipe systems. With RFS.
| Nickel-plated brass body. |
| Elastomer seals. |
| Shockproof ABS cap. |
| Built-in micrometric lockshield valve. |
| Internal bypass with 50% bore only for single pipe applications. |
| Angle connections, centre distance 37 mm M standard RBM thread for copper, polyethylene and multilayer pipe fittings. |
| Threaded connections to radiator M UNI-EN-ISO 228 with pre-gasket ogive in PTFE. |
| Connection for external probe Ø 15 mm. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
4-way angle diverter valve for single pipe and double pipe circuits
| Code | Size | Model | Box | Carton | Cat. | € |
| 02140450 | G 1/2" | 50%* | 10 | 10 | 21.01 | ||02140450_LastPrice|| |
| 02140400 | G 1/2" | 100%** | 10 | 10 | 21.01 | ||02140400_LastPrice|| |
* with RFS
Use fittings with RBM Standard thread for pipe connection.
