Series 22

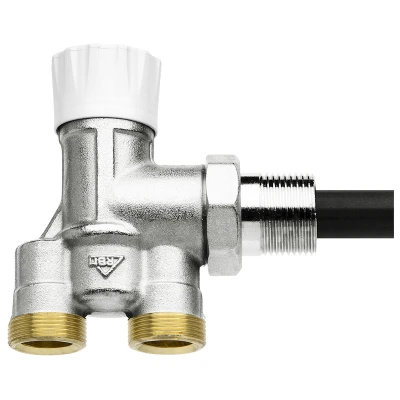

“Uniflux” 4-way valve for single pipe circuits

Series 22
"Uniflux" 4-way valve for single pipe circuits.
Nickel-plated brass body. Elastomer seals. Shockproof ABS hand wheel. Internal by-pass with fixed leakage. Polymer probe.
Line connections, centre distance 37 mm threaded M standard RBM for copper, polyethylene and multilayer pipe fittings. Connection to the radiator threaded M UNI-EN-ISO 228.
Max operating temperature 110 °C
Max operating pressure 10 Bar
Probe length 300 mm
1/2" probe outside diameter 10 mm
3/4" probe outside diameter 13 mm

4-way valve for single pipe circuits

Code Measure Model Pack Outer Cat.
22.04.00 G 1/2" Uniflux 5 20 21.01 ||00220400_LastPrice||
22.04.20 G 1/2" Uniflux s.c. 5 20 21.01 ||00220420_LastPrice||
22.05.00 G 3/4" Uniflux 5 20 21.01 ||00220500_LastPrice||
22.05.30 G 3/4" Ø 18 (*) Uniflux 5 20 21.01 ||00220530_LastPrice||

(*): Can be fed by Ø18 copper pipes (kit valve + reduction code 57.18.00)
