Kits for heating units
Series 225
Kit for heating units that can be fed from single-pipe and two-pipe systems. With RFS.
| Nickel-plated brass body. |
| Elastomer seals. |
| Shockproof ABS cap and handwheel. |
| Built-in micrometric lockshield valve. |
| Internal bypass with 50% bore only for single pipe applications. |
| In-line connections, centre distance 37 mm M standard RBM thread for copper, polyethylene and multilayer pipe fittings. |
| Connections for external probe Ø 15 mm. |
| Threaded connections to terminal M UNI-EN-ISO 228 with pre-gasket ogive in PTFE. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
| Probe not included. |
Download

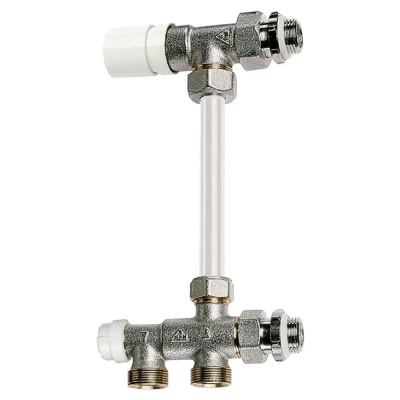

Kit including diverter valve + thermostatically controlled 1/2” reverse valve for single- and double-pipe systems
| Code | Size | Model | Box | Carton | Cat. | € |
| 02250450 | G 1/2" | Kit -- -50% * | 1 | 10 | 21.01 | ||02250450_LastPrice|| |
| 02250400 | G 1/2" | Kit -- -100% ** | 1 | 10 | 21.01 | ||02250400_LastPrice|| |
* Single pipe circuits
**Double pipe circuits
Floor or baseboard distribution in-line power supply connections.
Use fittings with RBM Standard thread for pipe connection.
