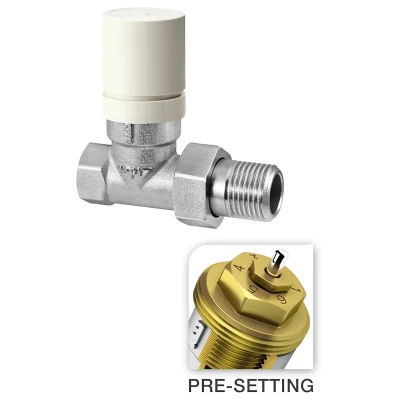

Valve with thermostatic option with straight pre-adjustment for iron pipe
Series 2641
Straight radiator valve for iron pipe with thermostatic option and pre-setting.
| Nickel-plated brass body. |
| Double seal obturator. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| Threaded straight connection F UNI-EN-ISO 228 for iron pipe. |
| Connection to threaded terminal M UNI-EN-ISO 228. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
Straight radiator valve for iron pipe with thermostatic option and pre-setting
| Code | Size | Box | Carton | Cat. | € |
| 26410390 | G 3/8" | 10 | 100 | 21.01 | ||26410390_LastPrice|| |
| 26410490 | G 1/2" | 10 | 100 | 21.01 | ||26410490_LastPrice|| |
| 26410590 | G 3/4" | 10 | 50 | 21.01 | ||26410590_LastPrice|| |
| 26410690 | G 1" | 5 | 20 | 21.01 | ||26410690_LastPrice|| |
Licensed use of trademark no. 43 (3/8" - 1/2")
Valve with thermostatic option and pre-setting.
Use spanner code 2878.00.00 (see page
Use only series 10 lockshield valve with 3/4" and 1" valves (see page
