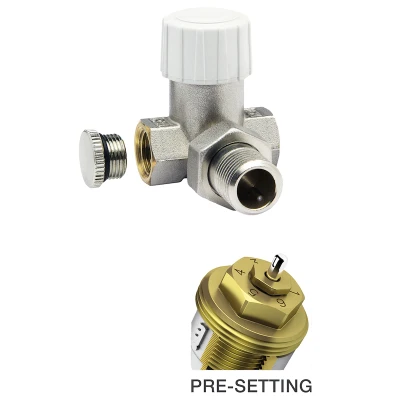

Valve with thermostatic option with angle pre-adjustment for iron pipe
Series 2720
Radiator reversible valve for iron pipe with thermostatic option and pre-setting.
| Nickel-plated brass body. |
| Double seal obturator. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| Straight threaded connections F UNI-EN-ISO 228 for iron pipe, reversible. |
| Connection to threaded terminal M UNI-EN-ISO 228. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Radiator reversible valve for iron pipe with thermostatic option and pre-setting
| Code | Size | Box | Carton | Cat. | € |
| 27200390 | G 3/8" | 10 | 10 | 21.01 | ||27200390_LastPrice|| |
| 27200490 | G 1/2" | 10 | 10 | 21.01 | ||27200490_LastPrice|| |
Valve with thermostatic option and pre-setting.
System side reversible connections with closing cap of unused way.
Use spanner code 2878.00.00 (see page
To turn the valves for iron pipes into valves for copper or polyethylene pipes, provide for the adapter fitting code 83.0X.00 (see page
