Series 28

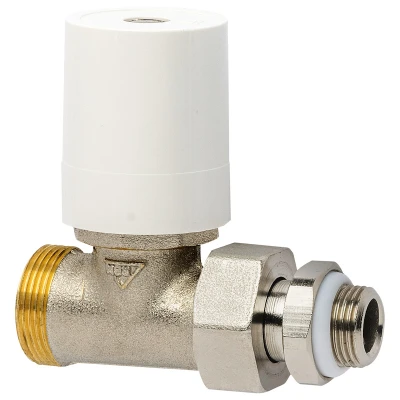

Manual single adjustment straight valve for copper or polyethylene pipe

Series 28
Manual single adjustment straight valve for copper or polyethylene pipe.
Nickel brass body.
Elastomer seals.
Shockproof ABS handwheel.
Threaded straight M standard RBM connection for copper, polyethylene, multi-layer pipe fittings.
Connection to threaded terminal M UNI-EN-ISO 228 with pre-gasket ogive in PTFE.
Max operating temperature 110 °C
Max operating pressure 10 Bar

Single straight regulating valve for copper or polyethylene pipe

Code Measure Kv (m³/h) Pack Outer Cat.
28.03.00 G 3/8" 1,4 10 100 21.01 ||00280300_LastPrice||
28.03.10 G 3/8" Ø 18 (*) 1,4 10 10 21.01 ||00280310_LastPrice||
28.04.00 G 1/2" 1,8 10 100 21.01 ||00280400_LastPrice||
28.04.10 G 1/2" Ø 18 (*) 1,8 10 10 21.01 ||00280410_LastPrice||

(*): Can be fed by Ø18 copper pipes (kit valve + reduction code 57.18.00)
