Coupled valves, only for shut-off of radiant plates
Series 301.B
Coupled double pipe valves, only for shut-off of radiant plates, for dual pipe circuits.
| Nickel brass body. |
| Elastomer seals. |
| Euroconus F G3/4"plate side swivel connections. |
| M G3/4" Euroconus system side connections. |
| Connections centre distance 50 mm. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download

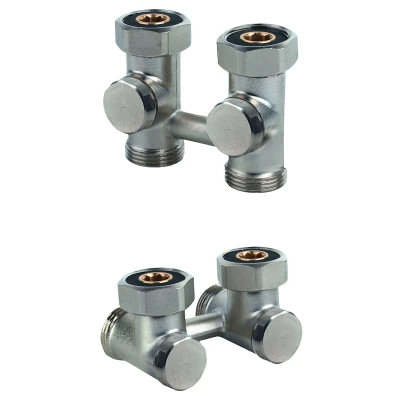

Coupled valve without straight bypass
| Code | Measure | Pack | Outer | Cat. | € |
| 03010580 | 3/4" | 1 | 50 | 21.01 | ||03010580_LastPrice|| |
Coupled valve without angle bypass
| Code | Measure | Pack | Outer | Cat. | € |
| 03020580 | 3/4" | 1 | 50 | 21.01 | ||03020580_LastPrice|| |
Use fittings with Euroconus G3/4" thread for pipe connection.
