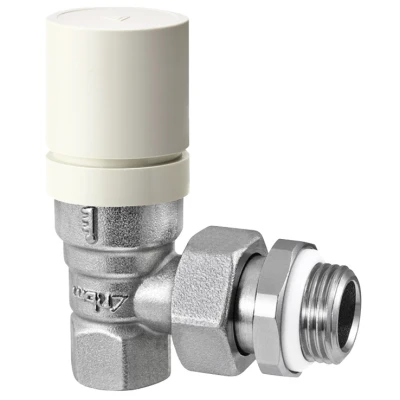

Angle valve with thermostatic option for iron pipe
Series 31
Angle valve with thermostatic option for iron pipe, complying with standard UNI-EN 215.
Nickel brass body. |
Double seal obturator. |
Elastomer seals. |
Shockproof ABS handwheel. |
Threaded angled connection F UNI-EN-ISO 228 for iron pipe. |
Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive (only for 3/8" and 1/2" diameters). |
Max operating temperature 110 °C |
Max operating pressure 10 Bar |
Download
Angle valve with thermostatic option for iron pipe
Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
00310300 | G 3/8" | 2,45 | 10 | 100 | 21.01 | ||00310300_LastPrice|| |
00310400 | G 1/2" | 2,45 | 10 | 100 | 21.01 | ||00310400_LastPrice|| |
00310500 | G 3/4" | - | 10 | 60 | 21.01 | ||00310500_LastPrice|| |
Licensed use of trademark no. 43 (3/8" - 1/2")
