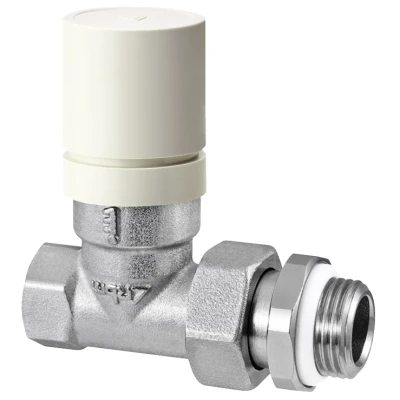

Straight valve with thermostatic option for iron pipe
Series 32
Straight valve with thermostatic option for iron pipe, complying with standard UNI-EN 215.
| Nickel brass body. |
| Double seal obturator. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| Threaded straight connection F UNI-EN-ISO 228 for iron pipe. |
| Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive (only for 3/8" and 1/2" diameters). |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
Straight valve with thermostatic option for iron pipe
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 00320300* | G 3/8" | 1,60 | 10 | 100 | 21.01 | ||00320300_LastPrice|| |
| 00320400* | G 1/2" | 1,60 | 10 | 100 | 21.01 | ||00320400_LastPrice|| |
| 00320500 | G 3/4" | - | 10 | 50 | 21.01 | ||00320500_LastPrice|| |
| 26410690 | G 1" | - | 5 | 20 | 21.01 | ||26410690_LastPrice|| |
* with RFS
Licensed use of trademark no. 43 (3/8" - 1/2")
