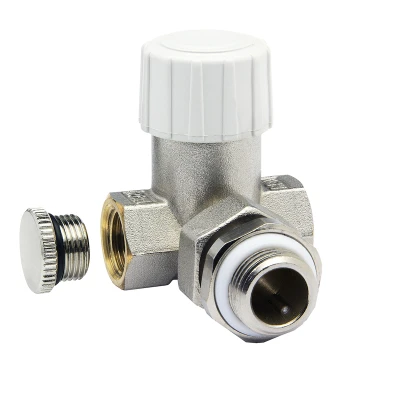

Angle valve with thermostatic option for iron pipe
Series 395
Thermostatizable angle valve for iron pipe with reversible connections and orthogonal control. With RFS.
| Nickel-plated brass body. |
| Double seal obturator. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| Straight threaded connections F UNI-EN-ISO 228 for iron pipe, reversible. |
| Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Valve with thermostatic option with reversible connections for iron pipe
| Code | Size | Kv (m³/h) | Box | Carton | Cat. | € |
| 03950300 | G 3/8" | 1,55 | 10 | 100 | 21.01 | ||03950300_LastPrice|| |
| 03950400 | G 1/2" | 1,60 | 10 | 100 | 21.01 | ||03950400_LastPrice|| |
* with RFS
System side reversible connections with closing cap of unused way.
