Coupled valves, only for shut-off of radiant plates
Series 401.B
Coupled double pipe valves, only for shut-off of radiant plates, for dual pipe circuits.
| Nickel-plated brass body. |
| Elastomer seals. |
| Swivel plate side connections F G3/4" Euroconus (or with 1/2" reduction) |
| M G3/4" Euroconus system side connections. |
| Connections centre distance 50 mm. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download

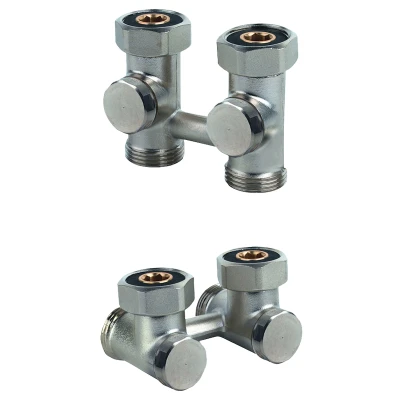

Coupled valve without straight bypass
| Code | Size | Box | Carton | Cat. | € |
| 04010580 | 3/4” x 3/4” | 1 | 50 | 21.01 | ||04010580_LastPrice|| |
| 4010580R | 1/2” x 3/4” | 1 | 50 | 21.01 | ||4010580R_LastPrice|| |
Coupled valve without angle bypass
| Code | Size | Box | Carton | Cat. | € |
| 04020580 | 3/4” x 3/4” | 1 | 50 | 21.01 | ||04020580_LastPrice|| |
| 4020580R | 1/2” x 3/4” | 1 | 50 | 21.01 | ||4020580R_LastPrice|| |
Use fittings with Euroconus G3/4" thread for pipe connection.
