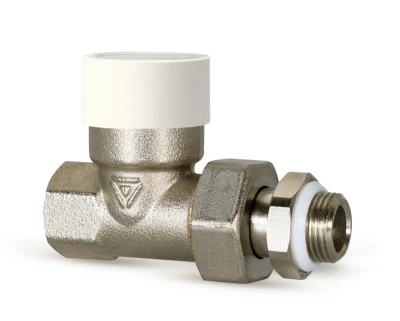

Straight lockshield shut-off and regulating valve for iron pipe
Series 4038
New straight lockshield shut-off and regulating valve for iron pipe.
Nickel brass body. |
Elastomer seals. |
Shockproof ABS cap. |
Threaded straight connection F UNI-EN-ISO 228 for iron pipe. |
Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive. |
Max operating temperature 110 °C |
Max operating pressure 10 Bar |
Download
Straight lockshield regulating valve for iron pipe
Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
4038.03.00 | G 3/8" | 1,9 | 10 | 100 | 21.01 | ||40380300_LastPrice|| |
4038.04.00 | G 1/2" | 2,1 | 10 | 100 | 21.01 | ||40380400_LastPrice|| |
