Series 424

“Uniflux” 4-way valve for single pipe circuits

Series 424

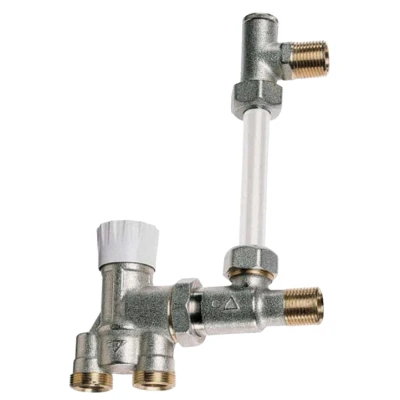

"Uniflux" 4-way valve for single pipe circuits with external probe.
Nickel brass body.
Elastomer seals.
Shockproof ABS handwheel.
Internal bypass with fixed leakage.
In-line connections, centre distance 37 mm M standard RBM thread for copper, polyethylene and multilayer pipe fittings.
Threaded radiator connection M UNI-EN-ISO 228.
Connections for external probe Ø 10 or Ø 15.
Max operating temperature 110 °C
Max operating pressure 10 Bar
Probe not included.

Uniflux 4-way valve for single pipe circuits with external probe

Code Measure Model Pack Outer Cat.
04240470 G 1/2" Uniflux S.E. -- Ø 10 4 16 21.01 ||04240470_LastPrice||
04240490 G 1/2" Uniflux S.E. -- Ø 15 4 16 21.01 ||04240490_LastPrice||

Radiator side hot fluid inlet.

Use fittings with RBM Standard thread for pipe connection.
