Jet-Line series: thermostatic angle valve kit for iron pipe
Series 4250
Jet-Line Series: thermostatic kit with thermostatic angle valve for iron pipe, compliant with standard UNI-EN 215 and angle lockshield valve for iron pipe.
| Nickel-plated brass body. |
| Double seal obturator. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| TL3 thermostatic control with liquid expansion, featuring an integrated sensor. |
| Threaded angled connection F UNI-EN-ISO 228 for iron pipe. |
| Connection to threaded terminal M UNI-EN-ISO 228. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Angle valve for thermostatic control and lockshield valve for iron pipe
| Code | Size | Box | Cat. | € |
| 42500300 | 3/8" | 10 | 21.01 | ||42500300_LastPrice|| |
| 42500400 | 1/2" | 10 | 21.01 | ||42500400_LastPrice|| |
* Licensed use of trademark no. 43

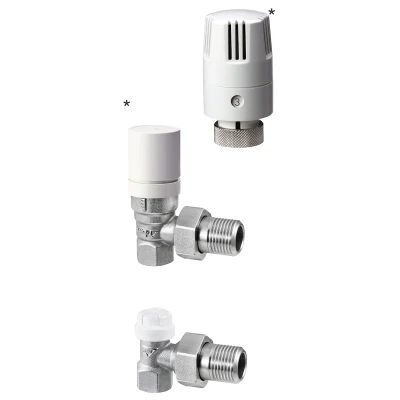

Supplied with:
valve with thermostatic option;
liquid expansion thermostatic head;
lockshield valve.
Kit components supplied in separate packages.
