Series 48

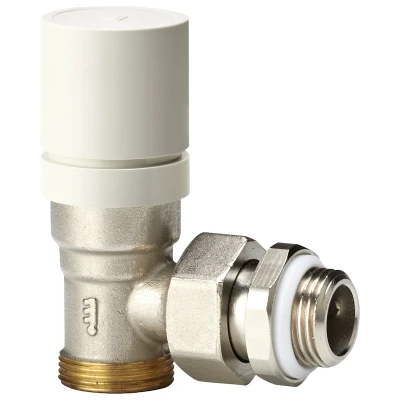

Angle valve with thermostatic option for copper or polyethylene pipe

Series 48
Angle valve with thermostatic option for copper or polyethylene pipe, complying with standard UNI-EN 215.
Nickel brass body.
Double seal obturator.
Elastomer seals.
Shockproof ABS handwheel.
RBM standard threaded angled M connection, for copper, polyethylene and multilayer pipe fittings.
Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive.
Max operating temperature 110 °C
Max operating pressure 10 Bar

Certifications:

Angle valve with thermostatic option for copper or polyethylene pipe

Code Measure Kv (m³/h) Pack Outer Cat.
00480300* G 3/8" 2,45 10 100 21.01 ||00480300_LastPrice||
00480400* G 1/2" 2,45 10 100 21.01 ||00480400_LastPrice||

* with RFS

Licensed use of trademark no. 43
