Series 564

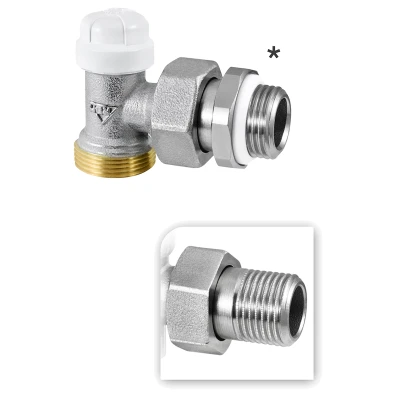

Jet-Line series: angle lockshield regulating valve for copper or polyethylene pipe

Series 564
Jet-Line Series: angle lockshield regulating valve for copper or polyethylene pipe, standard RBM connection.
Nickel brass body.
Elastomer seals.
Shockproof ABS handwheel.
Threaded angled standard RBM connection for copper, polyethylene, multi-layer pipe fittings.
Connection to threaded terminal M UNI-EN-ISO 228 (with pre-gasket ogive in PTFE series *).
Max operating temperature 110 °C
Max operating pressure 10 Bar

Angle lockshield regulating valve for copper or polyethylene pipe - RFS seal on radiator*

Code Measure Pack Outer Cat.
564.03.00 RFS 3/8”- - - - 10 100 21.01 ||05640300_LastPrice||
564.04.00 RFS 1/2”- - - - 10 100 21.01 ||05640400_LastPrice||

Angle lockshield regulating valve for copper or polyethylene pipe

Code Measure Pack Outer Cat.
564.03.40 RBM 3/8”- - - - 10 100 21.01 ||05640340_LastPrice||
564.04.40 RBM 1/2”- - - - 10 100 21.01 ||05640440_LastPrice||

System side standard RBM thread W 24.5x19F
