Series 565

Jet-Line series: straight lockshield regulating valve for copper or polyethylene pipe

Series 565

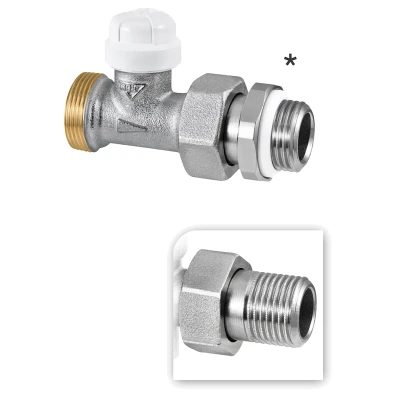

Jet-Line Series: straight lockshield regulating valve for copper or polyethylene pipe, standard RBM connection.
Nickel brass body.
Elastomer seals.
Shockproof ABS handwheel.
Threaded straight standard RBM connection for copper, polyethylene, multi-layer pipe fittings.
Connection to threaded terminal M UNI-EN-ISO 228 (with pre-gasket ogive in PTFE series *).
Max operating temperature 110 °C
Max operating pressure 10 Bar

Straight lockshield regulating valve for copper or polyethylene pipe - RFS seal on radiator*

Code Measure Pack Outer Cat.
565.03.00 RFS 3/8”- - - - 10 100 21.01 ||05650300_LastPrice||
565.04.00 RFS 1/2”- - - - 10 100 21.01 ||05650400_LastPrice||

Straight lockshield regulating valve for copper or polyethylene pipe

Code Measure Pack Outer Cat.
565.03.40 RBM 3/8”- - - - 10 100 21.01 ||05650340_LastPrice||
565.04.40 RBM 1/2”- - - - 10 100 21.01 ||05650440_LastPrice||

System side standard RBM thread W 24.5x19F
