Thermostatic control for thermostatically-controlled valves
Series 590.A
Thermostatic control for thermostatically-controlled valves. Internal sensitive element with liquid expansion.
Prearranged for temperature limitation and anti-tampering blockage.
| Max storage temperature 50 °C |
| Anti-freeze triggering (*) 7 °C |
| Setting field (1 ÷ 5) +10 ÷ +30 °C |
| Hysteresis 0.3 °C |
| Max differential pressure (head mounted on valve) 1 Bar |
| Thermostatic ethyl-acetate bulb liquid |
| Distance sensor cable length 2m (series TL 20) |
Download
Certifications:
Features:

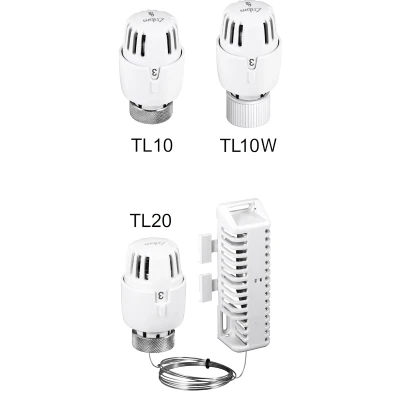

Thermostatic head with liquid expansion sensor
| Code | Model | Box | Carton | Cat. | € |
| 05900000* | TL10 | 10 | 100 | 21.01 | ||05900000_LastPrice|| |
| 07200030* | TL30 | 10 | 100 | 21.01 | ||07200030_LastPrice|| |
| 26330000* | TL70 | 10 | 100 | 21.01 | ||26330000_LastPrice|| |
| 30870000** | TL10W | 1 | 50 | 21.01 | ||30870000_LastPrice|| |
* Licensed use of trademark no. 43
**Reduced W value
Thermostatic head with distance sensor
| Code | Model | Box | Carton | Cat. | € |
| 05900010* | TL20 | 1 | 25 | 21.01 | ||05900010_LastPrice|| |
| 26330000* | TL70 | 10 | 100 | 21.01 | ||26330000_LastPrice|| |
*Licensed use of trademark nr. 43
Liquid expansion sensor (TL10 - TL30 - TL70 - TL10W).
High energy efficiency.
Approved in Class I.
