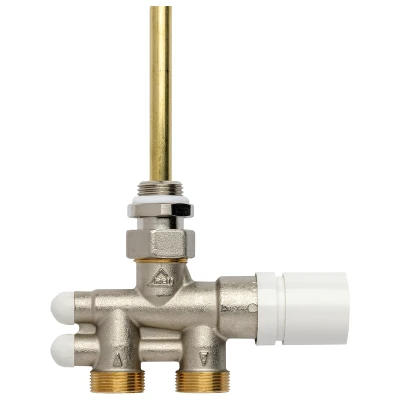

Series 754

Single-pipe, 4-way thermostatically controlled valve

Series 754
4-way single pipe/dual pipe valve with thermostatic option for bathroom terminals.
Nickel brass body.
Elastomer seals.
Shockproof ABS cap and handwheel.
Brass probe.
Built-in micrometric lockshield valve.
Suitable for single pipe and dual pipe systems.
In-line connections, centre distance 37 mm M standard RBM thread for copper, polyethylene and multilayer pipe fittings.
Threaded connections to radiator M UNI-EN-ISO 228 with pre-gasket ogive in PTFE.
Max operating temperature 110 °C
Max operating pressure 10 Bar
Kv mod. with thermostatic option 1.80 m³/h
Kv mod. thermostatic 1.44 m³/h
Probe length 300 mm
Probe outside diameter. 10 mm
Flow rate at radiator Adjustable bypass

4-way valves with thermostatic option for single pipe - double pipe circuits

Code Measure Pack Outer Cat.
07540400 G 1/2" 4 16 21.01 ||07540400_LastPrice||

For connection to radiators.

Use fittings with RBM Standard thread for pipe connection.
