Dirterm | Series 2829.A

Dirterm

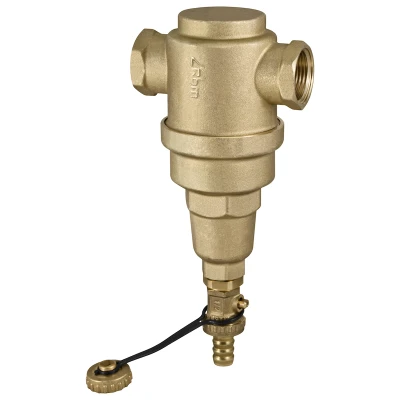

Self-cleaning dirt separator

Series 2829.A
Self-cleaning dirt separator. Complete with drain ball cock with hose connection.
Brass body.
Stainless steel AISI 304 3 Layers filtering cartridge.
Elastomer hydraulic seals.
Threaded connections FF UNI-EN-ISO 228.
Max operating pressure 10 Bar
Operating temperature 0 ÷ +110 °C

Certifications:

Self-cleaning dirt separator

Code Measure Kv (m³/h) Pack Outer Cat.
2829.04.00 G 1/2" 7,40 1 6 20.02 ||28290400_LastPrice||
2829.05.00 G 3/4" 12,66 1 6 20.02 ||28290500_LastPrice||
2829.06.00 G 1" 20,44 1 6 20.02 ||28290600_LastPrice||
2829.07.00 G 1"1/4 28,14 1 6 20.02 ||28290700_LastPrice||
2829.08.00 G 1"1/2 44,45 1 6 20.02 ||28290800_LastPrice||
2829.09.00 G 2" 65,58 1 6 20.02 ||28290900_LastPrice||
