Kilma Reel
White EPS aluminised raffia tacker roll panel
Series 4034
White EPS aluminised raffia tacker roll panel

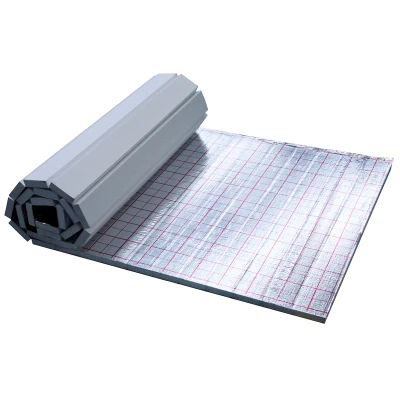

| Flat insulation panel in roll for radiant underfloor heating systems, made in white expanded sintered polystyrene EPS, coupled with an aluminium colour film in raffia (HDPE) reflecting with screen-printed mesh with 50 mm installation pitch to facilitate laying of pipes with clips and tacker. |
| The panel is CE marked and is suitable for water-based surface embedded heating and cooling systems according to standards UNI EN 1264. |
| Useful surface 10 m² |
| Density: 23÷27 Kg/m³ |
| Declared thermal conductivity: 0.035 W/m K |
| Thermal resistance according to UNI-EN 1264 |
| Designation and classification according to Directive 89/106 EC CS(10): EPS100 Euroclass E |
| HBCD Free product |
Download
**waiting_for_translation**
| Code | Useful Dim. (mm) | Insul. Th. (mm) | Heat Res. | Box m² | Cat. | €/m² |
| 40342002 | 1000x10000x20 | 20 | 0,57 | 10 | 30.04 | ||40342002_LastPrice|| |
| 40342702 | 1000x10000x27 | 27 | 0,77 | 10 | 30.04 | ||40342702_LastPrice|| |
| 40344402 | 1000x10000x44 | 44 | 1,26 | 10 | 30.04 | ||40344402_LastPrice|| |
For head joints use anodised aluminium adhesive tape code 2018.00.02
