MG Line
In-line magnetic filter
Series 4162

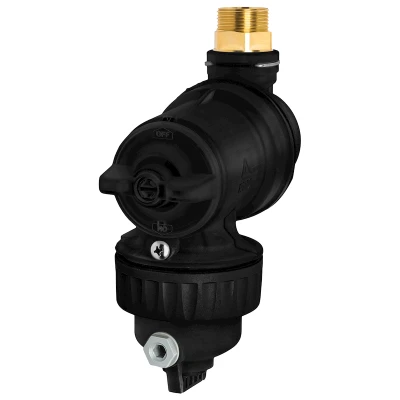

In-line magnetic filter
| Diverter body made of high mechanical performance plastic polymer. |
| Plastic polymer cartridge holder body. |
| Stainless steel AISI 304 filtering cartridge. |
| Elastomer hydraulic seals. |
| Threaded connections MM UNI-EN-ISO 228. |
| Max operating pressure 4 Bar |
| Operating temperature 0 - 90 °C |
| Neodymium magnet REN 35B = 11000 gauss |
| Filtering grade 800 μm |
Download
Features:
Self-cleaning magnetic sludge remover filter for heating pump
| Code | Measure | Kv (m³/h) | Cat. | € |
| 41620400 | G 1/2" | 6,83 | 20.03 | ||41620400_LastPrice|| |
| 41620500 | G 3/4" | 6,83 | 20.03 | ||41620500_LastPrice|| |
| 41620600 | G 1" | 6,83 | 20.03 | ||41620600_LastPrice|| |
| 41622200 | Ø22 mm | 6,83 | 20.03 | ||41622200_LastPrice|| |
| 41622800 | Ø28 mm | 6,83 | 20.03 | ||41622800_LastPrice|| |
