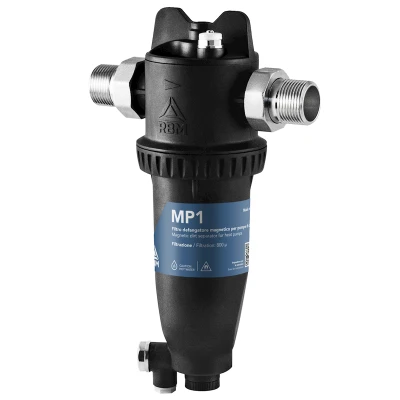

MP1
Self-cleaning magnetic sludge remover filter for heating pump
Series 3699
Self-cleaning magnetic sludge remover filter for heating pump.
| Body in plastic polymer. |
| AISI 304 stainless steel reinforced filtering cartridge. |
| Elastomer hydraulic seals. |
| Threaded connections MM UNI-EN-ISO 228. |
| Max operating pressure 6 Bar |
| Operating temperature 0 - +70 °C |
| Neodymium magnet B = 11000 gauss |
| Filtering grade 800 μm |
Download
Self-cleaning magnetic sludge remover filter for heating pumps.
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 3699.06.00 | G 1" | 17.3 | 1 | 4 | 20.03 | ||36990600_LastPrice|| |
| 3699.07.00 | G 1"1/4 | 17.3 | 1 | 4 | 20.03 | ||36990700_LastPrice|| |
