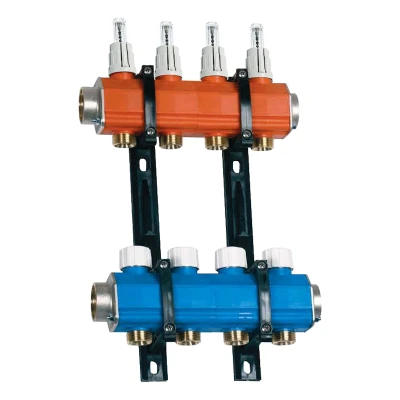

Kit for anti-condensation polymer compact manifolds
Series 1002.B
Kit for modular manifolds in anti-condensation polymer
| Each kit consists of: (pre-assembled components) |
| n° 1 multi-way manifold unit complete with flow meters with lockshield and flow indicator function; |
| n° 1 multi-way manifold unit complete with valves with thermostatic option with hand wheel; |
| 1 pair of plastic brackets for fixing manifolds. |
| Temperature range 5÷80 °C |
| Max. operating pressure 8 Bar |
Download
Kit for anti-condensation polymer compact manifolds
| Code | Size | Ways | Box | Carton | Cat. | € |
| 10020610 | 1" | 2+2 | 1 | 1 | 30.01 | ||10020610_LastPrice|| |
| 10030610 | 1" | 3+3 | 1 | 1 | 30.01 | ||10030610_LastPrice|| |
| 10040610 | 1" | 4+4 | 1 | 1 | 30.01 | ||10040610_LastPrice|| |
| 10050610 | 1" | 5+5 | 1 | 1 | 30.01 | ||10050610_LastPrice|| |
| 10060610 | 1" | 6+6 | 1 | 1 | 30.01 | ||10060610_LastPrice|| |
| 10070610 | 1" | 7+7 | 1 | 1 | 30.01 | ||10070610_LastPrice|| |
| 10080610 | 1" | 8+8 | 1 | 1 | 30.01 | ||10080610_LastPrice|| |
| 10090610 | 1" | 9+9 | 1 | 1 | 30.01 | ||10090610_LastPrice|| |
| 10100610 | 1" | 10+10 | 1 | 1 | 30.01 | ||10100610_LastPrice|| |
| 10110610 | 1" | 11+11 | 1 | 1 | 30.01 | ||10110610_LastPrice|| |
| 10120610 | 1" | 12+12 | 1 | 1 | 30.01 | ||10120610_LastPrice|| |
| 10130610 | 1" | 13+13 | 1 | 1 | 30.01 | ||10130610_LastPrice|| |
Centre distance connections through 50mm distribution -EUROCONUS G3/4" UNI-EN-ISO 228 threading
Supply indicator flow meters on each supply way.
Manifolds with internal cavities with thermal insulation and anti-condensation functions.
Use Euroconus fittings with G3/4" thread (see page
