Series 2028.D

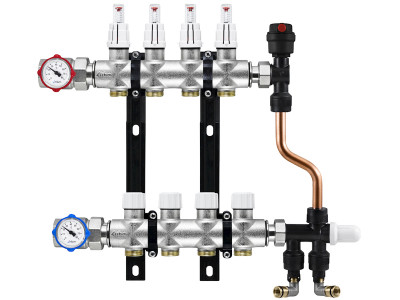

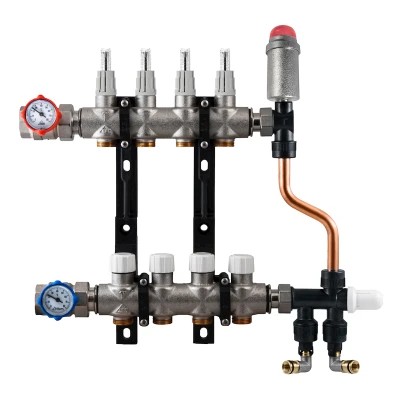

Brass compact manifold kit.
| Each kit contains: |
| n° 1 multi-way manifold unit complete with flow meters with lockshield and flow indicator function; |
| n° 1 multi-way manifold unit complete with valves with thermostatic option with hand wheel; |
| 1 pair of plastic brackets for fixing manifolds; |
| n° 2 1" ball valves with built-in thermometer 0÷80 °C; |
| n° 2 union fittings; |
| n° 1 3/8” automatic vent valve; |
| n° 1 adjustable by-pass valve complete with connections for system filling. |
| Temperature range 0÷80 °C |
| Max operating pressure 10 Bar |
Download
Brass compact manifold kit
| Code | Size | Ways | Box | Cat. | € |
| 20280640 | 1" | 2+2 | 1 | 30.01 | ||20280640_LastPrice|| |
| 20290640 | 1" | 3+3 | 1 | 30.01 | ||20290640_LastPrice|| |
| 20300640 | 1" | 4+4 | 1 | 30.01 | ||20300640_LastPrice|| |
| 20310640 | 1" | 5+5 | 1 | 30.01 | ||20310640_LastPrice|| |
| 20320640 | 1" | 6+6 | 1 | 30.01 | ||20320640_LastPrice|| |
| 20330640 | 1" | 7+7 | 1 | 30.01 | ||20330640_LastPrice|| |
| 20340640 | 1" | 8+8 | 1 | 30.01 | ||20340640_LastPrice|| |
| 20350640 | 1" | 9+9 | 1 | 30.01 | ||20350640_LastPrice|| |
| 20360640 | 1" | 10+10 | 1 | 30.01 | ||20360640_LastPrice|| |
| 20370640 | 1" | 11+11 | 1 | 30.01 | ||20370640_LastPrice|| |
| 20380640 | 1" | 12+12 | 1 | 30.01 | ||20380640_LastPrice|| |
| 20381340 | 1" | 13+13 | 1 | 30.01 | ||20381340_LastPrice|| |
Centre distance connections through 50mm distribution -EUROCONUS G3/4" UNI-EN-ISO 228 threading
Manifold kit can be fix on in walls in 8 cm box.
Made up of flow meter supply indicator on each supply way. Loose packaged components.
Use Euroconus fittings with G3/4" thread (see page
