Series 126

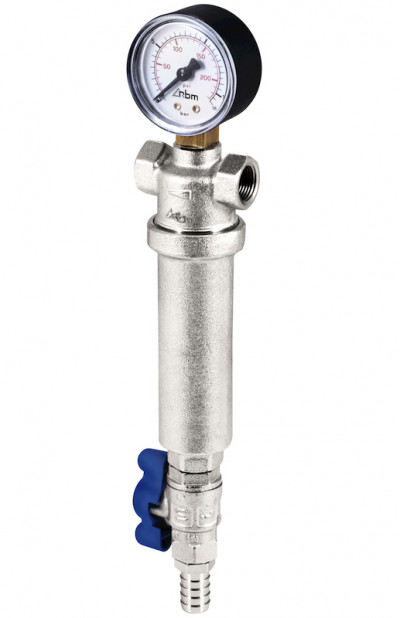

Water 100 μm self-cleaning filter with removable filtering cartridge

Series 126
Water 100 μm self-cleaning filter with removable filtering cartridge. Complete with dial pressure gauge and discharge ball cock with hose connection.
Nickel brass body.
Stainless steel AISI 304 stretched mesh filter.
Elastomer seals.
Threaded connections FF UNI-EN-ISO 228.
Max operating pressure 16 Bar
Max operating temperature 100 °C
Pressure gauge scale 0 ÷ 16 bar
Standard filtering 100 μm

Certifications:

Self-cleaning filter 100 μm

Code Measure Kv (m³/h) Pack Outer Cat.
126.03.10 G 3/8" 1,80 1 10 20.02 ||01260310_LastPrice||
126.04.10 G 1/2" 3,10 1 10 20.02 ||01260410_LastPrice||
126.05.10 G 3/4" 5,80 1 10 20.02 ||01260510_LastPrice||
126.06.10 G 1" 8,55 1 10 20.02 ||01260610_LastPrice||
126.07.10 G 1"1/4 14,85 1 1 20.02 ||01260710_LastPrice||
126.08.10 G 1"1/2 24,40 1 6 20.02 ||01260810_LastPrice||
126.09.10 G 2" 26,10 1 6 20.02 ||01260910_LastPrice||
126.10.10 G 2"1/2 107,80 1 1 20.02 ||01261010_LastPrice||
126.11.10 G 3" 120,20 1 1 20.02 ||01261110_LastPrice||
126.13.10 G 4" 129,00 1 1 20.02 ||01261310_LastPrice||
