Series 3924

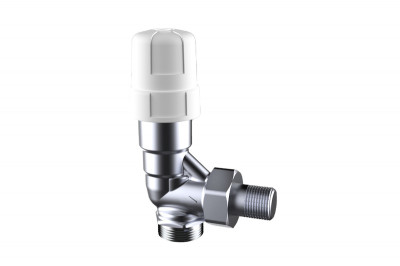

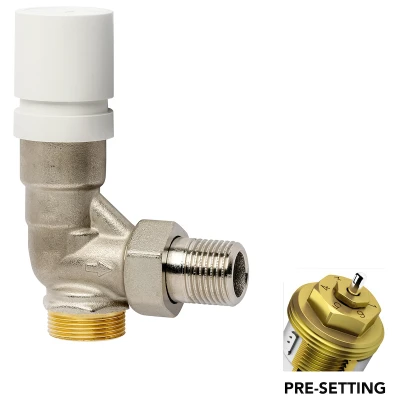

Thermostatic angle valve with pre-adjustment

Series 3924
Thermostatically controlled corner valve with pre-setting independent from pressure for copper pipe.
Nickel brass body.
Double seal obturator.
Elastomer seals.
Shockproof ABS handwheel.
Threaded angled connection F UNI-EN-ISO 228 for iron pipe.
Connection to threaded terminal M UNI-EN-ISO 228.
Max operating temperature 110 °C
Max operating pressure 10 Bar

Valvola termostatizzabile con preregolazione indipendente dalla pressione ad angolo per tubo rame

Code Measure Pack Outer Cat.
3924.03.90 G 3/8” - 7 28 21.01 ||39240390_LastPrice||
3924.04.90 G 1/2” - 7 28 21.01 ||39240490_LastPrice||
