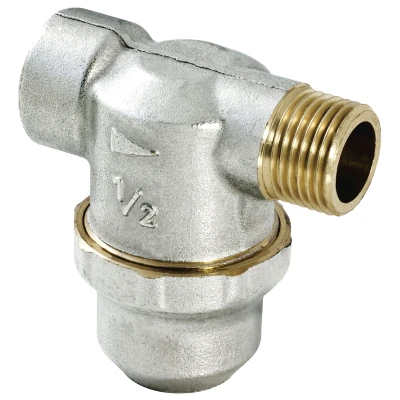

Line filter with removable filtering cartridge, MF connection
Series 4
Line filter with removable filtering cartridge, MF connection. Suitable for water.
| Nickel brass body. |
| Stainless steel AISI 304 stretched mesh filter. |
| Elastomer seals. |
| Threaded connections MF UNI-EN-ISO 228. |
| Max operating pressure 16 Bar |
| Max operating temperature 100 °C |
| Filtering grade: 50-100-300-800 μm |
Download
Certifications:
DHW
Line filter 800 μm mf connection
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 00040400 | G 1/2" | 3,40 | 10 | 40 | 20.02 | ||00040400_LastPrice|| |
| 00040500 | G 3/4" | 5,00 | 6 | 24 | 20.02 | ||00040500_LastPrice|| |
| 00040600 | G 1" | 8,70 | 6 | 24 | 20.02 | ||00040600_LastPrice|| |
| 00040700 | G 1"1/4 | 14,10 | 4 | 4 | 20.02 | ||00040700_LastPrice|| |
| 00040800 | G 1"1/2 | 26,50 | 2 | 2 | 20.02 | ||00040800_LastPrice|| |
| 00040900 | G 2" | 26,50 | 2 | 2 | 20.02 | ||00040900_LastPrice|| |
Line filter 300 μm mf connection
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 00040410 | G 1/2" | 3,30 | 10 | 40 | 20.02 | ||00040410_LastPrice|| |
| 00040510 | G 3/4" | 4,90 | 6 | 24 | 20.02 | ||00040510_LastPrice|| |
| 00040610 | G 1" | 8,40 | 6 | 24 | 20.02 | ||00040610_LastPrice|| |
| 00040710 | G 1"1/4 | 13,70 | 4 | 4 | 20.02 | ||00040710_LastPrice|| |
| 00040810 | G 1"1/2 | 24,40 | 2 | 2 | 20.02 | ||00040810_LastPrice|| |
| 00040910 | G 2" | 24,40 | 2 | 2 | 20.02 | ||00040910_LastPrice|| |
Line filter 100 μm mf connection
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 00040470 | G 1/2" | 3,30 | 10 | 40 | 20.02 | ||00040470_LastPrice|| |
| 00040570 | G 3/4" | 4,90 | 6 | 24 | 20.02 | ||00040570_LastPrice|| |
| 00040670 | G 1" | 8,20 | 6 | 24 | 20.02 | ||00040670_LastPrice|| |
| 00040770 | G 1"1/4 | 13,40 | 4 | 4 | 20.02 | ||00040770_LastPrice|| |
| 00040870 | G 1"1/2 | 23,60 | 2 | 2 | 20.02 | ||00040870_LastPrice|| |
| 00040970 | G 2" | 23,60 | 2 | 2 | 20.02 | ||00040970_LastPrice|| |
Line filter 50 μm mf connection
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 00040420 | G 1/2" | 1,90 | 10 | 40 | 20.02 | ||00040420_LastPrice|| |
| 00040520 | G 3/4" | 3,50 | 6 | 24 | 20.02 | ||00040520_LastPrice|| |
| 00040620 | G 1" | 4,30 | 6 | 24 | 20.02 | ||00040620_LastPrice|| |
| 00040720 | G 1"1/4 | 6,60 | 4 | 4 | 20.02 | ||00040720_LastPrice|| |
| 00040820 | G 1"1/2 | 11,20 | 2 | 2 | 20.02 | ||00040820_LastPrice|| |
| 00040920 | G 2" | 11,20 | 2 | 2 | 20.02 | ||00040920_LastPrice|| |
Replaceable filtering cartridge.
See BU Service.
