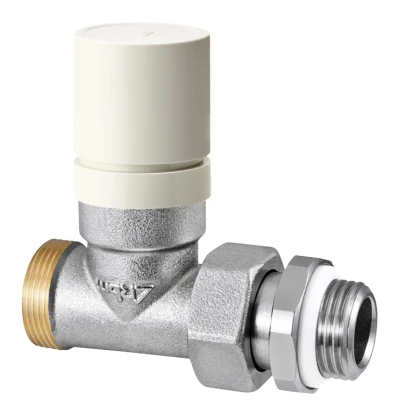

Straight valve with thermostatic option for copper or polyethylene pipe
Series 49
Thermostatic straight valve for copper or polyethylene pipe, complying with standard UNI-EN 215.
| Nickel brass body. |
| Double seal obturator. |
| Elastomer seals. |
| Shockproof ABS handwheel. |
| RBM standard threaded straight M connection for copper, polyethylene and multilayer pipe fittings. |
| Connection to terminal through threaded M RFS (UNI-EN-ISO 228) with PTFE pre-gasket ogive. |
| Max operating temperature 110 °C |
| Max operating pressure 10 Bar |
Download
Certifications:
Straight valve with thermostatic option for copper or polyethylene pipe
| Code | Measure | Kv (m³/h) | Pack | Outer | Cat. | € |
| 49.03.00* | G 3/8" | 1,60 | 10 | 100 | 21.01 | ||00490300_LastPrice|| |
| 49.04.00* | G 1/2" | 1,60 | 10 | 100 | 21.01 | ||00490400_LastPrice|| |
* with RFS
