AIRFLAT 120H | Series 5501.12

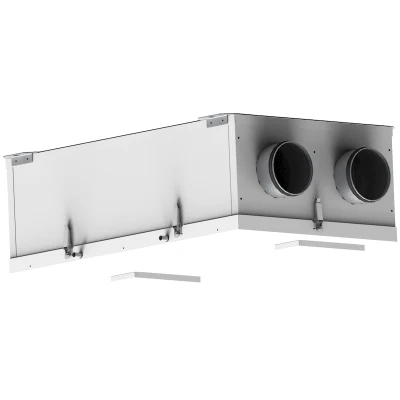

AIRFLAT 120H
High-efficiency vertical 120 m³/h recovery unit

Series 5501.12
High-efficiency horizontal 120 m³/h recovery unit with built-in bypass for ceiling-mounting
  • 3+1V operation adjustable via the supplied remote touch panel
  • Bypass automatic operation.
  • Filter replacement and alarm alert.
  • Filter alarm alert.
  • Dimensions (LxHxD): 800x270x480mm, 25 kg
    Aeraulic connections: 4x DN 125M opposite
    Condensate drain connection: Ø12 mm
    Power supply: 230V/50Hz
    Self-supporting sheet metal frame painted externally in RAL9003, with internal shaped EPS insulation with a density of 40 kg/m³
    Static heat exchanger in polypropylene with counter-current flows for very high sensitive heat recovery efficiencies (code 5501.12.16 - 5502.12.16)
    Enthalpy exchanger (code 5521.12.16 - 5522.12.16)
    80% ePM1 class filters with low pressure drop
    Motorised by-pass with motor inserted in the electrical panel for easy maintenance

    Download

    Certifications:

    Features:

    AIRFLAT 120H

    Code Model Description Pack Cat.
    5501.12.16 AIRFLAT 120H-R 120m³/h, horiz, right 1 30.09 ||55011216_LastPrice||
    5502.12.16 AIRFLAT 120H-L 120m³/h, horiz,left 1 30.09 ||55021216_LastPrice||

    AIRFLAT 120H - ERV

    Code Model Description Pack Cat.
    5521.12.16 AIRFLAT 120H-R-ERV 120m³/h, horiz, right 1 30.09 ||55211216_LastPrice||
    5522.12.16 AIRFLAT 120H-L-ERV 120m³/h, horiz,left 1 30.09 ||55221216_LastPrice||
