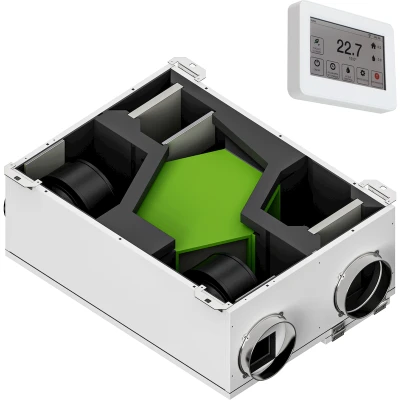

AIRFLAT 150 Horizontal
Recuperatore orizzontale ad altissima efficienza da 150 m³/h
Series AFT.15H
High-efficiency 150 m³/h horizontal heat recovery unit, with constant flow rate and extremely quiet
| Structure: bearing structure in sheet metal, internal insulation in high density EPS 30 kg/m³ and expanded polyethylene. |
| Framework and internal infills in thick galvanized sheet metal. |
| Heat exchanger: cross flows in countercurrent. |
| Sensitive version in polypropylene (code AFT15HSD - AFT15HSS) |
| Enthalpic version in propylene with transparent membranes (code AFT15HED - AFT15HES) |
| Brushless fans: in inverter adjusted direct-current to achieve extreme comfort and energy efficiency with the constant flow rate function. |
| Filters: EPM1 filter on fresh air and extracted air with low pressure drop. Easy to remove for routine maintenance. |
| Motorised automatic by-pass with motor inserted in the electrical panel for easy maintenance. |
| Control panel: AIR TOUCH with possibility of selecting and modifying ventilation speed, manual or automatic operation due to built-in temperature and humidity probe, setpoint management, weekly programming and filter replacements signal and notifications. |
Download
Certifications:
Features:
AIRFLAT 150H
| Code | Model | Pack | Cat. | € |
| AFT15HSD | AIRFLAT 150H | 1 | 30.09 | ||AFT15HSD_LastPrice|| |
| AFT15HSD | AIRFLAT 150H Lh | 1 | 30.09 | ||AFT15HSS_LastPrice|| |
AIRFLAT 150H - ERV
| Code | Model | Pack | Cat. | € |
| AFT15HED | AIRFLAT 150H ERV Rh | 1 | 30.09 | ||AFT15HED_LastPrice|| |
| AFT15HES | AIRFLAT 150H ERV Lh | 1 | 30.09 | ||AFT15HES_LastPrice|| |
Ceiling-mounted brackets and remote control included in the supply.
