AIRFLAT 200 V | Series 5601.20

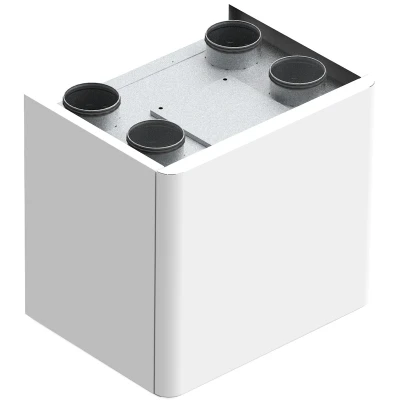

AIRFLAT 200 V
Very high efficiency 200 m³/h vertical heat recovery unit

Series 5601.20
High-efficiency vertical 200 m³/h recovery unit with built-in bypass for wall-mounting
  • 3+1V operation adjustable via the supplied remote touch panel
  • Bypass automatic operation
  • Filter alarm alert
  • Dimensions (LxHxD): 790x670x640mm, 38 Kg
    Aeraulic connections: 4x DN 160M opposite
    Condensate drain connection: Ø 20 mm
    Power supply: 230V/50Hz
    Double-panelled structure in galvanised sheet metal internally and externally painted RAL9003 with interposed insulation, thickness 20 mm, density 42 Kg/m³
    Backward-curved-blade radial centrifugal fans with EC motors with electronic speed control and low consumption
    High-efficiency polystyrene counter-current cross flow heat exchanger (code 5601.20.16 - 5602.20.16)
    Enthalpy exchanger (code 5621.20.16 - 5622.20.16)
    70% ePM1 class filters with low pressure drop
    Motorised by-pass with motor inserted in the electrical panel for easy maintenance

    Download

    Certifications:

    Features:

    AIRFLAT 200V

    Code Model Description Pack Outer Cat.
    5601.20.16 AIRFLAT 200V-R 200m³/h, vert, right 1 1 30.09 ||56012016_LastPrice||
    5602.20.16 AIRFLAT 200V-L 200m³/h, vert, left 1 1 30.09 ||56022016_LastPrice||

    AIRFLAT 200V ERV

    Code Model Description Pack Outer Cat.
    5621.20.16 AIRFLAT 200V-R-ERV 200m³/h, vert, right 1 1 30.09 ||56212016_LastPrice||
    5622.20.16 AIRFLAT 200V-L-ERV 200m³/h, vert, left 1 1 30.09 ||56222016_LastPrice||
