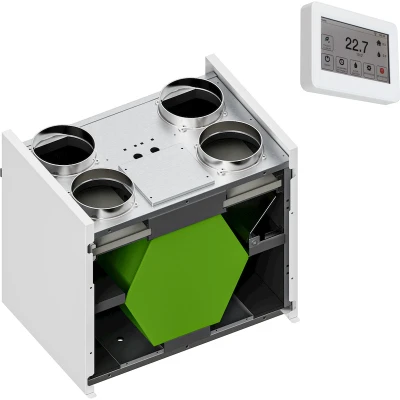

AIRFLAT 250 Vertical
Recuperatore verticale ad altissima efficienza da 250 m³/h
AFT.25V series
High-efficiency 250 m³/h vertical heat recovery unit, with constant flow rate and extremely quiet
| Structure: bearing structure in sheet metal, internal insulation in high density EPS 30 kg/m³ and expanded polyethylene. |
| Framework and internal infills in thick galvanized sheet metal. |
| Heat exchanger: cross flows in countercurrent. |
| Sensitive version in polypropylene (code AFT25VSD - AFT25VSS) |
| Enthalpic version in propylene with transparent membranes (code AFT25VED - AFT25VES) |
| Brushless fans: in inverter adjusted direct-current to achieve extreme comfort and energy efficiency with the constant flow rate function. |
| Filters: EPM1 filter on fresh air and extracted air with low pressure drop. Easy to remove for routine maintenance. |
| Motorised automatic by-pass with motor inserted in the electrical panel for easy maintenance. |
| Control panel: AIR TOUCH with possibility of selecting and modifying ventilation speed, manual or automatic operation due to built-in temperature and humidity probe, setpoint management, weekly programming and filter replacements signal and notifications. |
Download
Certifications:
Features:
AIRFLAT 250V
| Code | Model | Pack | Cat. | €/m |
| AFT25VSD | AIRFLAT 250V Rh | 1 | 30.09 | ||AFT25VSD_LastPrice|| |
| AFT25VSS | AIRFLAT 250V Lh | 1 | 30.09 | ||AFT25VSS_LastPrice|| |
AIRFLAT 250V - ERV
| Code | Model | Pack | Cat. | €/m |
| AFT25VED | AIRFLAT 250V ERV Rh | 1 | 30.09 | ||AFT25VED_LastPrice|| |
| AFT25VES | AIRFLAT 250V ERV Lh | 1 | 30.09 | ||AFT25VES_LastPrice|| |
Anti-vibration mounting brackets and remote control SET-1.1P series included in supply
