AIRFLAT 450 Horizontal
Recuperatore orizzontale ad altissima efficienza da 450 m³/h
AFT.45H series

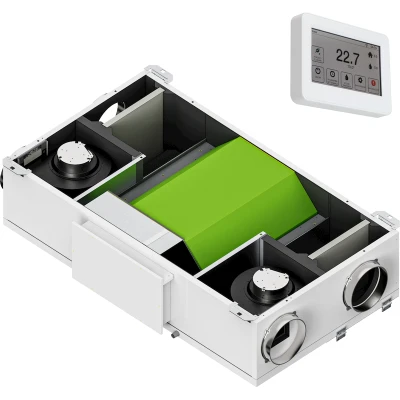

High-efficiency 450 m³/h horizontal heat recovery unit, with constant flow rate and extremely quiet
| Structure: bearing structure in self-bearing sheet metal, internal insulation in high density EPS 30 kg/m³ and expanded polyethylene. |
| Framework and internal infills in thick galvanized sheet metal. |
| Heat exchanger: cross flows in countercurrent. |
| Sensitive version in polypropylene (code AFT45HSD - AFT45HSS) |
| Brushless fans: in inverter adjusted direct-current to achieve extreme comfort and energy efficiency with the constant flow rate function. |
| Filters: EPM1 filter on fresh air and extracted air with low pressure drop. Easy to remove for routine maintenance. |
| Motorised automatic by-pass with motor inserted in the electrical panel for easy maintenance. |
| Control panel: AIR TOUCH with possibility of selecting and modifying ventilation speed, manual or automatic operation due to built-in temperature and humidity probe, setpoint management, weekly programming and filter replacements signal and notifications. |
Download
Certifications:
Features:
AIRFLAT 450H
| Code | Model | Pack | Cat. | € |
| AFT45HSD | AIRFLAT 450H Rh | 1 | 30.09 | ||AFT45HSD_LastPrice|| |
| AFT45HSS | AIRFLAT 450H Lh | 1 | 30.09 | ||AFT45HSS_LastPrice|| |
Ceiling-mounted brackets and remote control included in the supply.
