Kilma Easy2 H.T.
More Easy2 A.T. distribution module in kit

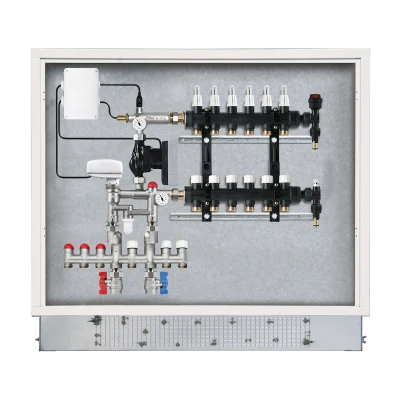

Distribution module pre-assembled in wall flush mounted kit suitable for hydronic heating and cooling circuits.
The Module can be electrically connected to the thermoregulators in the Kilma Set 2 series.
H.T. manifold thermostatically controlled.
Insulation casing, of the brass parts, not included.
| Centre distance between attachments on the plant side 90 mm. |
| Centre distance of connections on the diverter line of the low temperature manifold 50 mm, Euroconus G 3/4" threaded connections. |
| Centre distance of connections on the diverter line of the high temperature manifold 45 mm, Euroconus G 3/4" threaded connections. |
Download
Kilma Easy2 H.T.
| Code | Size | Ways | Width (mm) | Height (mm) | Box | Carton | Cat. | € |
| 36910200 | 1" | 2+2 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910200_LastPrice|| |
| 36910300 | 1" | 3+3 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910300_LastPrice|| |
| 36910400 | 1" | 4+4 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910400_LastPrice|| |
| 36910500 | 1" | 5+5 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910500_LastPrice|| |
| 36910600 | 1" | 6+6 | 800 | 700÷820 | 1 | 1 | 30.02 | ||36910600_LastPrice|| |
| 36910700 | 1" | 7+7 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||36910700_LastPrice|| |
| 36910800 | 1" | 8+8 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||36910800_LastPrice|| |
| 36910900 | 1" | 9+9 | 1000 | 700÷820 | 1 | 1 | 30.02 | ||36910900_LastPrice|| |
| 36911000 | 1" | 10+10 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911000_LastPrice|| |
| 36911100 | 1" | 11+11 | 1200 | 700÷820 | - | 1 | 30.02 | ||36911100_LastPrice|| |
| 36911200 | 1" | 12+12 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911200_LastPrice|| |
| 36911300 | 1" | 13+13 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911300_LastPrice|| |
| 36911400 | 1" | 14+14 | 1200 | 700÷820 | 1 | 1 | 30.02 | ||36911400_LastPrice|| |
high performance adjustable flow pump EEI<0.23 - ERP 622/2012
Cabinet depth 110 ÷ 160 mm
Insulation casing
| Code | Box | Carton | Cat. | € |
| 37050002* | 1 | 1 | 30.02 | ||37050002_LastPrice|| |
| 37050012** | 1 | 1 | 30.02 | ||37050012_LastPrice|| |
* Specific insulation casing for mixing valve, circulator and well
** Specific insulation casing for H.T. manifold.
The dimensions of the cabinet allow installation of the By-pass assembly code 09100600 (excluding the 14-piece composition). Use fittings with G 3/4" Euroconus thread (see p.
Product specific for summer/winter radiant climate control.
